ArtiGrid Documentation

Get Started

ArtiGrid can be configured quickly using a simple configuration file. In this version, baseUrl is no longer required because the library now detects paths automatically.

Example configuration

<?php
return [
    'db' => [
        'driver' => 'mysql',
        'host' => 'localhost',
        'port' => 3306,
        'dbname' => 'artigrid',
        'user' => 'root',
        'password' => '',
        'charset' => 'utf8'
    ],
    'forms' => [
        'required_all_fields' => true // form field required option
    ],
    'filter' => true,
    'search' => true,
    'add' => true,
    'refresh' => true,
    'actionsPosition' => 'right',
    'edit' => true,
    'view' => true,
    'checkbox' => true,
    'dropdownpage' => true,
    'pagination' => true,
    'delete' => true,
    'delete_multiple' => true,
    'mail' => [
        'host' => 'smtp.gmail.com',
        'username' => 'daniel.telematico@gmail.com',
        'password' => 'your-password',
        'port' => 587,
        'secure' => 'tls',
        'from' => 'daniel.telematico@gmail.com',
        'from_name' => 'ArtiGrid'
    ]
];
?>

Core

The core of ArtiGrid is based on defining a data source and rendering it using different modes. By default, it generates a full CRUD interface, but you can also render specific forms depending on your needs.

Basic Example

include 'D:\dev\laragon\www\artigrid\ArtiGrid.php';

$grid = new ArtiGrid();
$grid->table('users');

echo $grid->render();

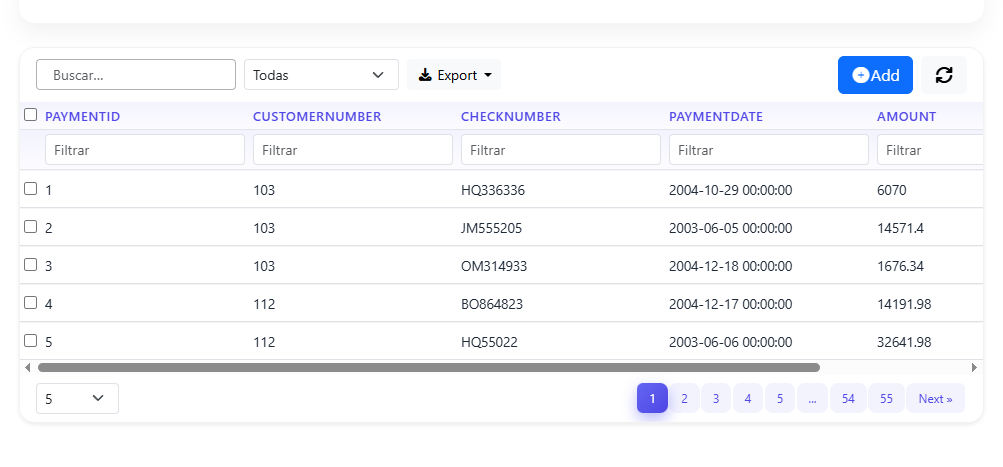

Example result

Render Modes

ArtiGrid supports multiple rendering modes that allow you to display only specific parts of the CRUD system.

echo $grid->render();           // Full CRUD
echo $grid->render("insert");   // Insert form only
echo $grid->render("edit", 1);  // Edit record with ID 1
echo $grid->render("view", 2);  // View record with ID 2
echo $grid->render("select");   // Custom select / login form

Insert Form Mode

ArtiGrid allows you to generate a standalone insert form using render('insert').

This mode displays only the form for creating new records, without showing the grid. It is ideal when you want a dedicated page for data entry.

Example

$grid = new ArtiGrid();

$grid->table('payments')
    ->template('bootstrap5')
    ->required(false)
    ->validation_required('customerNumber')
    ->validation_required('checkNumber');

echo $grid->render('insert');

Fields

ArtiGrid lets you organize and customize fields so your forms become easier to read and more user-friendly. You can group fields, change field types, and even rename column labels without modifying your database.

Arrange Fields

$grid->fields_arrange('name,date,office', 'Group 1 - Names', true, false);

Field Types (Select, Input, etc.)

$grid->setFieldType('status', 'select');
$grid->setSelect('status', ['Active', 'Inactive']);

Column Rename

The colRename() method allows you to change how column headers are displayed in the grid without modifying the database structure.

This is useful when your database uses technical names but you want more user-friendly labels in the interface.

$grid = new ArtiGrid();

$grid->table('products')
    ->template('bootstrap5')
    ->colRename('productName', 'Product Name') // rename column
    ->modal();

echo $grid->render();

Relational Combobox

The combobox() method allows you to transform a field into a dropdown (select) using either dynamic or static data sources.

It supports two types of sources:

• Database table: load options from another table by defining the value and label columns.
• Array: define a fixed list of options directly in your code.

In this example, the officeCode field is linked to the offices table, using officeCode as the value and city as the label. The lastName field uses a static array as a simple dropdown source.

Example

$grid = new ArtiGrid();
$grid->table('employees')
    ->template('bootstrap5')
    ->unset('filter', false)
    ->modal();

$grid->combobox('lastName', [
    'Activate' => 'Activate',
    'Desactive' => 'Desactive'
]);

$grid->combobox('officeCode', 'offices', 'officeCode', 'city');

echo $grid->render();

Inline Edit

Inline editing allows users to modify table data directly without opening a separate form or modal window. This is especially helpful for fast edits and repeated updates.

ArtiGrid supports inline editing with different field types such as text, textarea, date, and select/combobox inputs. In the example below, lastName is edited as a textarea and officeCode is handled as a dropdown list. This improves user experience, speeds up data entry, and helps enforce valid input options directly within the grid.

Example

$grid = new ArtiGrid();
$grid->table('employees')
    ->template('bootstrap5')
    ->unset('filter', false)
    ->unset('edit_multiple', false)
    ->setFieldType('lastName', 'textarea')
    ->setFieldType('officeCode', 'select') // Define field type for inline editing
    ->setSelect('officeCode', [
        "2" => 'Boston',
        "7" => 'London',
        "3" => 'NYC',
        "4" => 'Paris',
        "1" => 'San Francisco',
        "6" => 'Sydney',
        "5" => 'Tokyo'
    ])
    ->inlineEdit([
        'mode'   => 'cell',
        'fields' => ['lastName', 'officeCode']
    ]) // Activate inline editing, restricted to these fields
    ->combobox('officeCode', 'offices', 'officeCode', 'city')
    ->perPage(10)
    ->modal();

echo $grid->render();

Field Conditions

The fieldCondition() method allows you to create dynamic show/hide rules for form fields without writing any JavaScript. Rules are defined in PHP and automatically injected into the frontend via data-field-conditions.

When a condition is defined such as: $grid->fieldCondition('email', 'officeCode', '==', 4, 'hide'), ArtiGrid stores an internal rule indicating that the email field depends on the value of officeCode. When the form is rendered, these rules are converted into JSON and injected into the frontend. JavaScript reads them, identifies the trigger field, and evaluates the rule in real time.

Signature

$grid->fieldCondition(
    string $field,      // Field to show or hide
    string $dependsOn,  // Field that triggers the rule
    string $operator,   // ==, !=, >, <, >=, <=, in, not_in
    mixed  $value,      // Value or array to compare against
    string $action      // 'show' (default) or 'hide'
);

Example — Hide email when officeCode equals 4

$grid = new ArtiGrid();
$grid->table('employees')
    ->template('bootstrap5')
    ->fieldCondition('email', 'officeCode', '==', 4, 'hide');

echo $grid->render();

Supported operators

• == → equals
• != → not equals
• > / < → greater / less than
• >= / <= → greater or equal / less or equal
• in → value is in array
• not_in → value is not in array

Multiple conditions — chaining

$grid->fieldCondition('email',     'officeCode', '==', 4,                   'hide')
     ->fieldCondition('rut_tutor',  'tipo',       '==', 'menor',             'show')
     ->fieldCondition('descuento',  'convenio',   'in', ['isapre','fonasa'], 'show');

Insert mode vs Edit mode

In insert mode, the condition evaluates as soon as the form renders and again on every change to the trigger field. In edit mode, ArtiGrid reads the saved record value and applies the rule immediately when the form opens — no user interaction needed.

Checkbox Groups

ArtiGrid supports checkbox groups for fields that need to store multiple selected values, with built-in validation requiring a minimum number of checked options.

Signature

$grid->checkboxGroup(
    string $field,      // field name
    array  $options,    // ['value' => 'Label', ...]
    string $separator = ',', // separator used when saving to the database
    int    $min = 1     // minimum number of checked options required
);

Example — Single selection required (min 1)

$grid = new ArtiGrid();

$grid->table('products')
    ->template('bootstrap5')
    ->checkboxGroup('tags', [
        'new'      => 'New',
        'featured' => 'Featured',
        'sale'     => 'On Sale'
    ])
    ->formFields(['productName', 'tags'])
    ->modal();

echo $grid->render();

Example — Require at least 2 selections

$grid->checkboxGroup('permissions', [
    'read'   => 'Read',
    'write'  => 'Write',
    'delete' => 'Delete',
    'admin'  => 'Admin'
], ',', 2); // at least 2 checkboxes must be checked

Rich Editors (CKEditor, Select2, Chosen)

ArtiGrid can upgrade plain text areas and select fields into richer, more user-friendly controls: a WYSIWYG editor for long text, and two alternative dropdown enhancers for large or searchable option lists.

1. CKEditor — Rich Text Fields

The ckeditor() method turns a textarea field into a full WYSIWYG editor (CKEditor 5), useful for descriptions, articles, or any HTML content field.

$grid->ckeditor(
    string $field,
    array  $options = [] // 'height' (int), 'toolbar' (array)
);

$grid = new ArtiGrid();

$grid->table('articles')
    ->template('bootstrap5')
    ->ckeditor('content', ['height' => 300])
    ->formFields(['title', 'content'])
    ->modal();

echo $grid->render();

2. Select2 (Tom Select) — Enhanced Dropdowns

The select2() method upgrades a <select> field with search-as-you-type filtering, a cleaner UI, and support for clearing the selection — all powered by Tom Select, not jQuery.

$grid->select2(
    string $field,
    array  $options = [] // 'placeholder', 'allowClear', 'width'
);

$grid = new ArtiGrid();

$grid->table('employees')
    ->template('bootstrap5')
    ->combobox('officeCode', 'offices', 'officeCode', 'city')
    ->select2('officeCode', [
        'placeholder' => 'Select an office',
        'allowClear'  => true
    ])
    ->modal();

echo $grid->render();

3. Chosen — Alternative Enhanced Dropdown

The chosen() method is an alternative to select2() for teams that prefer the Chosen-style UI. Like select2(), it does not require jQuery — ArtiGrid ships its own lightweight implementation.

$grid->chosen(
    string $field,
    array  $options = [] // 'placeholder_text_single', 'placeholder_text_multiple',
                         // 'no_results_text', 'width', 'allow_single_deselect'
);

$grid = new ArtiGrid();

$grid->table('employees')
    ->template('bootstrap5')
    ->combobox('officeCode', 'offices', 'officeCode', 'city')
    ->chosen('officeCode', [
        'placeholder_text_single' => 'Choose an office'
    ])
    ->modal();

echo $grid->render();

Calendar

ArtiGrid can render a full calendar view instead of a table, powered by FullCalendar, with CRUD operations built in — creating, editing, and viewing records directly from calendar events.

Configuration

$grid->calendar([
    'titleField'  => 'title',        // field used as the event title
    'startField'  => 'start',        // start date/datetime field
    'endField'    => 'end',          // end date/datetime field (optional)
    'colorField'  => null,           // field holding a color value (optional)
    'allDayField' => null,           // boolean field for all-day events (optional)
    'initialView' => 'dayGridMonth', // FullCalendar view
    'editable'    => true,           // allow drag/resize
    'selectable'  => true,           // allow clicking a day to add a record
    'locale'      => 'en',
    'height'      => 'auto',
]);

Example

$grid = new ArtiGrid();

$grid->table('appointments')
    ->template('bootstrap5')
    ->calendar([
        'titleField' => 'patientName',
        'startField' => 'appointmentDate',
        'colorField' => 'status',
        'locale'     => 'en'
    ])
    ->formFields(['patientName', 'appointmentDate', 'status'])
    ->required(false)
    ->validation_required('patientName')
    ->validation_required('appointmentDate');

echo $grid->render('calendar');

Image / File Upload with Crop

ArtiGrid supports image fields with built-in cropping — similar in spirit to jCrop, but implemented natively with Cropper.js and no jQuery dependency. It supports both single and multiple image uploads, each with its own crop step and live preview before saving.

Signature

$grid->imageField(
    string $field,
    array  $options = [
        'multiple'    => false, // allow selecting more than one image
        'crop'        => true,  // show the crop overlay on selection
        'aspectRatio' => null,  // e.g. 1, 16/9, 4/3 — null = free aspect
        'width'       => null,  // output width in pixels
        'height'      => null,  // output height in pixels
        'maxFiles'    => 10,    // max images when multiple is true
    ]
);

Example — Single image with square crop

$grid = new ArtiGrid();

$grid->table('products')
    ->template('bootstrap5')
    ->required(false)
    ->imageField('productImage', [
        'aspectRatio' => 1,
        'width'       => 400,
        'height'      => 400,
    ])
    ->validation_required('productImage')
    ->formFields(['productName', 'productImage']);

echo $grid->render('insert');

Example — Multiple images (gallery-style)

$grid = new ArtiGrid();

$grid->table('payments')
    ->template('bootstrap5')
    ->required(false)
    ->imageField('receipt_images', [
        'multiple'    => true,
        'aspectRatio' => 1,
        'width'       => 400,
        'height'      => 400,
    ])
    ->validation_required('customerNumber')
    ->validation_required('checkNumber')
    ->validation_required('receipt_images')
    ->formFields(['customerNumber','checkNumber', 'paymentDate', 'amount', 'receipt_images']);

echo $grid->render('insert');

Send Email

ArtiGrid allows you to send emails automatically or manually using built-in methods. This is useful for notifications, confirmations, and alerts when data is inserted into the system.

1. Automatic Email on Insert

You can automatically send an email when a new record is inserted using sendEmailInsert().

$grid = new ArtiGrid();

$grid->table('payments')
    ->formFields([
        'customerNumber',
        'checkNumber',
        'paymentDate',
        'amount'
    ])

    ->sendEmailInsert(true, [
        'to' => ['daniel.telematico@gmail.com'],
        'subject' => 'New order',
        'body' => "
            New order
            ID: {id}
            Client: {customerNumber}
            State: {checkNumber}
        "
    ]);

echo $grid->render();

Dynamic placeholders

You can include any field from your table using curly braces:

• {id}
• {customerNumber}
• {checkNumber}
• {any_field}

2. Manual Email Sending

You can also send emails manually at any point using sendMail().

$grid->sendMail(
    'cliente@email.com',
    'Purchase made',
    'Thank you for your purchase. I have attached your product.'
);

3. Mail Configuration

Email functionality depends on your SMTP configuration in the config file.

'mail' => [
    'host' => 'smtp.gmail.com',
    'username' => 'your@email.com',
    'password' => 'your-password',
    'port' => 587,
    'secure' => 'tls',
    'from' => 'your@email.com',
    'from_name' => 'ArtiGrid'
]

Use cases

• Order confirmation emails
• Admin notifications
• User alerts
• System logs or events

UI

You can improve readability by highlighting cells and rows based on field values. This is useful for alerts, statuses, or priority indicators.

Conditional Colors for Cells and Rows

ArtiGrid applies conditional styling to individual cells or entire rows using dynamic rules based on field values — no extra JavaScript needed.

1. Apply Color to a Specific Cell — CellColor()

Highlights a single cell when a condition is met. The fourth argument is a CSS style string applied directly to that cell.

$grid->CellColor('officeCode', '==', 4, 'background:red;color:white');

2. Apply Style to an Entire Row — RowColor()

Styles the full row when a condition is met. The fourth argument can be a CSS string or a structured array with multiple properties.

$grid->RowColor('paymentDate', '==', '2004-11-14', [
    'background'  => '#8DED79',
    'color'       => '#000',
    'font-weight' => 'bold'
]);

3. Full Example

$grid = new ArtiGrid();

$grid->CellColor('checkNumber', '==', 'NG94694',    'background:green;color:white;');
$grid->CellColor('paymentDate', '==', '2004-03-10', 'background:red;color:white;');

$grid->RowColor('paymentDate', '==', '2004-11-14', [
    'background'  => '#8DED79',
    'color'       => '#000',
    'font-weight' => 'bold'
]);

$grid->table('payments');
echo $grid->render();

Example

$grid = new ArtiGrid();

$grid->table('payments')
    ->template('bootstrap5')
    ->buttonsArrange();

echo $grid->render();

Everything Deactivated

    $grid = new ArtiGrid();
    $grid->table('employees')
        ->template('bootstrap5')
        ->perPage(10)
        ->unset('filter', false)
        ->unset('add', false)
        ->unset('search', false)
        ->unset('refresh', false)
        ->unset('pagination', false)
        ->unset('dropdownpage', false)
        ->unset('checkbox', false)
        ->unset('actions', false);
    echo $grid->render();


Validation

Validation helps you control the information users submit. You can require specific fields, disable the “all required” behavior, and define which inputs must be completed before submitting the form.

Basic Required Validation

$grid = new ArtiGrid();
$grid->table('employees')
    ->template('bootstrap5')
    ->unset('filter', false)
    ->required(false)
    ->validation_required([
        'lastName',
        'firstName',
        'extension'
    ])
    ->modal();

echo $grid->render();

Check for Duplicate Records When Inserting

ArtiGrid also allows you to prevent duplicate records when inserting data. This is useful when certain combinations of fields should be unique.

In the following example, the insert will be blocked if another record already exists with the same title and description.

$grid = new ArtiGrid();

$grid->table('gallery')
    ->required(false)
    ->validation_required('image')
    ->validation_required('title')
    ->validation_required('description')
    ->template('bootstrap5')
    ->fieldType('image', 'image')
    ->formFields([
        'image',
        'title',
        'description'
    ])
    ->checkDuplicateRecord([
        'title',
        'description'
    ]);

echo $grid->render();

Query

ArtiGrid allows you to control how data is retrieved and displayed using filters, sorting, grouping, and custom SQL queries.

Basic Query (Custom SQL)

$grid = new ArtiGrid();
$grid->query('SELECT * FROM products WHERE productCode = "S32_2206"')
    ->template('bootstrap5')
    ->modal();

echo $grid->render();

CRUD with Query

ArtiGrid also allows you to build a full CRUD interface using custom SQL queries through the query() method.

This provides full control over the data source, allowing you to filter, join, or transform data directly at the query level instead of relying on a fixed table.

It is especially useful for advanced scenarios where you need specific datasets or more complex data structures.

When using custom queries, ArtiGrid cannot automatically determine which table should be used for write operations (insert, update, delete). For this reason, you must explicitly define it using the editable() method.

The editable() method receives the table name, enabling ArtiGrid to handle all CRUD operations such as add, view, edit, and delete, even when the data is loaded from a custom query.

$grid = new ArtiGrid();
$table = 'products';

$grid->query("SELECT * FROM $table WHERE productCode = 'S32_2206'")
    ->editable($table)
    ->template('bootstrap5')
    ->formFields([
        'productCode',
        'productName'
    ])
    ->crudCol([
        'id',
        'productCode',
        'productName'
    ])
    ->required(false)
    ->validation_required('productCode')
    ->modal();

echo $grid->render();

Filters & Sorting

You can filter and sort data using built-in methods without modifying your database queries directly.

// Filtering
$grid->where('status','=','active');
$grid->whereLike('name','john');

// Sorting
$grid->orderby('id','desc');

Order By Example

The orderby() method allows you to define how data is sorted by default when the grid loads.

You can choose ascending (asc) or descending (desc) order for any column.

$grid = new ArtiGrid();

$grid->table('payments')
    ->template('bootstrap5')
    ->orderby('paymentId', 'desc')
    ->formFields(['customerNumber','checkNumber','amount'])
    ->modal();

echo $grid->render();

Group By

The groupby() method allows you to group records based on one or more fields.

This is useful when working with repeated values like customers, categories, or related records, making the data easier to understand.

$grid = new ArtiGrid();

$grid->table('payments')
    ->template('bootstrap5')
    ->groupby(['customerNumber'])
    ->formFields(['customerNumber','checkNumber','amount'])
    ->modal();

echo $grid->render();

Charts

ArtiGrid includes built-in chart support, allowing you to visualize data directly from the database without requiring extra libraries in your code.

With the chart_labels() method, you can define labels, multiple datasets, and even execute SQL queries dynamically by prefixing the query with #.

By combining chart_labels() with chart_view(true), you can render visual charts together with your grid, giving users both tabular and graphical views of the same information.

Example

$chart = new ArtiGrid();

$chart->table('orderdetails')
    ->template('bootstrap5');

$chart->chart_labels(
    ['S24_2841', 'S24_3420', 'S24_3949', 'S24_4278', 'S32_4289', 'S50_1341'],
    [
        [
            'label' => '# of Quantity Ordered',
            'data' => '#select quantityOrdered from orderdetails where id IN (60,61,62,63,64,65)',
            'backgroundColor' => 'rgba(255, 99, 132, 0.2)',
            'borderColor' => 'rgba(255, 99, 132, 1)',
            'borderWidth' => 1
        ],
        [
            'label' => '# Price of Order',
            'data' => '#select priceEach from orderdetails where id IN (60,61,62,63,64,65)',
            'backgroundColor' => 'rgba(30, 23, 132, 0.2)',
            'borderColor' => 'rgba(30, 23, 132, 0.2)',
            'borderWidth' => 1
        ]
    ],
    'pie',
    [
        'scales' => [
            'y' => ['beginAtZero' => true]
        ],
        'plugins' => [
            'legend' => ['display' => true]
        ]
    ]
);

$chart->chart_view(true);

echo $chart->render();

Supported Chart Types

ArtiGrid supports several common chart types, which can be selected through the third parameter of chart_labels().

• bar — useful for comparing values across categories
• line — useful for trends over time or sequences
• pie — useful for proportions and percentage-like distributions
• doughnut — similar to pie, but with a centered empty space
• radar — useful for comparing multiple variables around a central axis
• polarArea — useful for comparing values by radial area

Examples of Chart Type Usage

// Bar chart
$grid->chart_labels($labels, $datasets, 'bar');

// Line chart
$grid->chart_labels($labels, $datasets, 'line');

// Pie chart
$grid->chart_labels($labels, $datasets, 'pie');

// Doughnut chart
$grid->chart_labels($labels, $datasets, 'doughnut');

// Radar chart
$grid->chart_labels($labels, $datasets, 'radar');

// Polar area chart
$grid->chart_labels($labels, $datasets, 'polarArea');

Dynamic SQL Datasets

One of the most powerful features is the ability to load chart data directly from SQL queries by prefixing the query string with #.

'data' => '#select quantityOrdered from orderdetails where id IN (60,61,62,63,64,65)'

This makes it possible to build real-time visual reports directly from your database without manually preparing arrays.

JSON API

ArtiGrid can build CRUD interfaces directly from JSON data, which makes it useful when working with APIs or external data sources instead of a direct database table.

Example

            $ch = curl_init();
            curl_setopt($ch, CURLOPT_URL, "https://jsonplaceholder.typicode.com/todos");
            curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
            $response = curl_exec($ch);
            curl_close($ch);

            // 2. Convert to array
            $data = json_decode($response, true);

            // 3. Take only the first 20 records
            $data = array_slice($data, 0, 20);

            // 4. Create rows for the grid with the fields you need
            $rows = [];
            foreach ($data as $item) {
                $id = $item['id'];
                $rows[] = [
                    'id' => $id,
                    'name' => "Usuario $id",
                    'email' => "usuario$id@mail.com",
                    'created_at' => date('Y-m-d', strtotime("-$id days")),
                    'title' => $item['title'],
                    'completed' => $item['completed'] ? 'Sí' : 'No'
                ];
            }

            // 5. Define grid columns
            $columns = [
                ['name'=>'id','label'=>'ID','type'=>'number'],
                ['name'=>'name','label'=>'Nombre','type'=>'text'],
                ['name'=>'email','label'=>'Correo','type'=>'text'],
                ['name'=>'created_at','label'=>'Fecha','type'=>'date'],
                ['name'=>'title','label'=>'Título','type'=>'text'],
                ['name'=>'completed','label'=>'Completado','type'=>'text'],
            ];

            // 6. Create and configure the grid
            $grid = new ArtiGrid();
            $grid->perPage(10);
            $grid->addCustomBtn(
                'btn btn-sm btn-info', // class
                'ver',                 // action JS
                '', // icon
                []                     // conditions
            );

            // 7. Prepare JSON for the grid
            $jsonData = [
                'columns' => $columns,
                'rows' => $rows
            ];

            // 8. Render the grid
            echo $grid->crudJson($jsonData)->render();


Advanced

Advanced features let you build more dynamic and flexible CRUD interfaces. One common example is joining related tables.

Example

            $grid = new ArtiGrid();
            $grid->table('employees');
            $grid->join('officeCode','offices','officeCode');
            echo $grid->render();


Callbacks

ArtiGrid callbacks allow you to hook into the CRUD lifecycle and execute custom logic before or after database operations. They are especially powerful for implementing advanced validation, enforcing business rules, transforming data, or conditionally stopping an operation.

Unlike basic validations, callbacks give you full control over the request flow. You can validate multiple fields at once, apply complex conditions, and return structured errors that are automatically handled and displayed in the frontend.

Validation with callbacks

Callbacks can act as a centralized validation layer. Inside beforeInsert and beforeUpdate, you can validate fields, enforce rules, and return structured error messages.

Errors can be defined at two levels:

• fields → specific field errors (shown inline in inputs)
• global → general errors (shown as alerts/messages)

Example callback configuration

<?php
// callbacks/name_table.php  // example: productlines.php

return [
    'beforeInsert' => [
        ['callback' => 'insert_paymets', 'file' => 'functions.php'],
    ],

    'beforeUpdate' => [
        ['callback' => 'update_paymets', 'file' => 'functions.php'],
    ],
];
?>

Example callback function (with validation)

<?php
function insert_paymets($data) {

    $errors = [
        'fields' => [],
        'global' => []
    ];

    if (empty($data['customerNumber'])) {
        $errors['fields']['customerNumber'] = 'Customer is required';
    }

    if (!isset($data['amount']) || $data['amount'] === '') {
        $errors['fields']['amount'] = 'Amount is required';
    } elseif (!is_numeric($data['amount'])) {
        $errors['fields']['amount'] = 'Amount must be a number';
    }

    if (!empty($data['paymentDate'])) {
        if ($data['paymentDate'] > date('Y-m-d')) {
            $errors['global'][] = 'Payment date cannot be in the future';
        }
    }

    if (!empty($errors['fields']) || !empty($errors['global'])) {
        return [
            'success' => false,
            'errors' => $errors,
            'data' => $data
        ];
    }

    return $data;
}
?>

Available callback events

• beforeInsert → runs before inserting a new record
• afterInsert → runs after inserting a new record
• beforeUpdate → runs before updating an existing record
• beforeDelete → runs before deleting a record

Authentication, Login & Permissions

ArtiGrid allows you to build a complete login system using custom forms, callbacks, sessions, and role-based permissions (RBAC).

1. Custom Login Form

You can design your own login interface using templates. The placeholders {user}, {password} and {action} are automatically replaced by ArtiGrid.

$html = '
<div class="container d-flex justify-content-center align-items-center">
    <div class="col-md-8 col-lg-4">
        <div class="card shadow-lg border-0">
            <div class="card-body p-4">
                <h4 class="text-center mb-4">
                    Login Example
                </h4>
                <div class="mb-3">
                    <label class="form-label">User *</label>
                    {user}
                </div>
                <div class="mb-3">
                    <label class="form-label">Password *</label>
                    {password}
                </div>
                <div class="d-grid">
                    {action}
                </div>
            </div>
        </div>
    </div>
</div>';
$grid->setSelectFormTemplate($html);

2. Login Configuration

$grid->table('users')
    ->template('bootstrap5')
    ->required(false)
    ->validation_required('user')
    ->validation_required('password')
    ->formFields(['user','password']);

echo $grid->render('select');

3. Callback Validation

The login is validated using a callback before processing the form.

// callbacks/users.php
return [
    'beforeSelect' => [
        ['callback' => 'login', 'file' => 'functions.php'],
    ]
];

// functions.php

function login($data){

    if (session_status() === PHP_SESSION_NONE) {
        session_start();
    }

    $db = DB::connect();

    $user = trim($data['user'] ?? '');
    $pass = trim($data['password'] ?? '');

    if ($user === '' || $pass === '') {
        return [
            'success' => false,
            'message' => 'Empty username or password'
        ];
    }

    $q = new Queryfy($db);
    $row = $q->table('users')
            ->where('user', $user)
            ->limit(1)
            ->get();

    $row = $row[0] ?? null;

    if ($row && password_verify($pass, $row['password'])) {

        $permissions = getPermissionsByRole($row['rol']);

        $_SESSION['artigrid_auth'] = [
            'id' => $row['id'],
            'rol' => $row['rol'],
            'usuario' => $row['user'],
            'permissions' => $permissions
        ];

        return [
            'success' => true,
            'message' => 'Successful login',
            'redirect' => 'management.php'
        ];
    }

    return [
        'success' => false,
        'message' => 'Incorrect username or password'
    ];
}

4. Frontend Handling

document.addEventListener('artigrid_select_form_response', function(e){

    const { response } = e.detail;

    if (response.success && response.data?.success) {
        if (response.data?.redirect) {
            window.location.href = response.data.redirect;
        }
    } else {
        const msg = response.data?.message || response.message;

        Swal.fire({
            icon: 'error',
            title: 'Error',
            text: msg
        });
    }

});

5. Access Logged User

$auth = $grid->auth();

echo $auth['usuario'];
echo $auth['rol'];

6. Permissions (RBAC)

You can control what each user can do using permissions.

if (!$grid->can('add')) {
    $grid->unset('add', false);
}

if (!$grid->can('delete')) {
    $grid->unset('delete', false);
}

if ($grid->canAny(['add','edit'])) {
    echo "User has access";
}

if ($grid->isRole('admin')) {
    $grid->unset('refresh', false);
}

7. Role Permissions Example

function getPermissionsByRole($role){
    return [
        'admin'  => ['add','view','edit','delete'],
        'editor' => ['view','edit'],
        'viewer' => ['view']
    ][$role] ?? [];
}

Dependent Dropdowns

ArtiGrid allows you to create dependent dropdowns, where one field dynamically changes its options based on the value selected in another field.

This improves data accuracy and user experience by preventing invalid selections and guiding users through a logical flow.

Basic Example (Office → Manager)

When the user selects an office, the manager dropdown will only show employees from that office.

$grid->combobox(
    'manager',
    'employees',
    'employeeNumber',
    ['firstName','lastName'], // label
    'office',                 // parent field
    'officeCode'              // DB column to match
);

Full Example (Multiple Dependencies)

$grid = new ArtiGrid();

$grid->table('consultation')
    ->template('bootstrap5')
    ->required(false)
    ->validation_required([
        'office',
        'manager',
        'country',
        'region',
        'city'
    ])

    ->fields_arrange('office,manager,name', 'Group 1 - Names', true, true)
    ->fields_arrange('country,region,city', 'Group 2 - Regions', true, true)

    // Parent dropdown
    ->combobox('office','offices','officeCode','city')

    // Static dropdown
    ->combobox('name', [
        'Pedro' => 'Pedro',
        'Juan' => 'Juan',
        'JHON' => 'JHON',
        'JACKSON' => 'JACKSON'
    ])

    // Dependent dropdown
    ->combobox(
        'manager',
        'employees',
        'employeeNumber',
        ['firstName','lastName'],
        'office',
        'officeCode'
    )

    // Multi-level dependency (Country → Region → City)
    ->combobox('country','meta_location','id','local_name', null, null, [
        'type' => ['=', 'CO']
    ])

    ->combobox('region','meta_location','id','local_name',
        'country',
        'in_location',
        ['type'=> ['=', 'RE']]
    )

    ->combobox('city','meta_location','id','local_name',
        'region',
        'in_location',
        ['type'=> ['=', 'CI']]
    );

echo $grid->render('insert');

HTML Templates for Form Fields

ArtiGrid allows you to fully customize the layout of your forms and views using custom HTML templates. This gives you complete control over the design while the library continues to handle all CRUD logic automatically.

1. Insert Form Template

This template is used when creating new records. Placeholders like {customerNumber} are automatically replaced by ArtiGrid.

$insert = '<div class="order-form">
    <h2>Customer Order Form</h2>

    <div class="form-group">
        <label>Customer Number: *</label>
        {customerNumber}
    </div>

    <div class="form-group">
        <label>Order Date: *</label>
        {orderDate}
    </div>

    <div class="form-actions">
        {action}
    </div>

</div>';

$grid->setInsertFormTemplate($insert);

2. Edit Form Template

This template is used when editing existing records. You can change structure or layout without affecting CRUD functionality.

$edit = '<div class="order-form">
    <h2>Edit Order</h2>

    <div class="form-group">
        <label>Customer Number</label>
        {customerNumber}
    </div>

    <div class="form-group">
        <label>Order Date</label>
        {orderDate}
    </div>

    {action}

</div>';

$grid->setEditFormTemplate($edit);

3. View Template

This template is used to display record details in a read-only format.

$view = "<div class='table-responsive'>
    <table class='table table-bordered table-sm'>
        <tr>
            <th>Customer</th>
            <td>{customerNumber}</td>
        </tr>
        <tr>
            <th>Date</th>
            <td>{orderDate}</td>
        </tr>
    </table>
</div>";

$grid->setViewFormTemplate($view);

Full Example

$grid = new ArtiGrid();

$insert = '<div class="order-form">
    <h2>Customer Order Form</h2>

    <div class="form-group">
        <label>Customer Number: *</label>
        {customerNumber}
    </div>

    <div class="form-group">
        <label>Order Date: *</label>
        {orderDate}
    </div>

    <div class="form-group">
        <label>Status:</label>
        {status}
    </div>

    <div class="form-actions">{action}</div>
</div>';

$edit = '<div class="order-form">
    <h2>Edit Order</h2>

    <div class="form-group">
        <label>Order Number</label>
        {orderNumber}
    </div>

    <div class="form-group">
        <label>Order Date</label>
        {orderDate}
    </div>

    {action}
</div>';

$view = "<div class='table-responsive'>
    <table class='table table-bordered table-sm'>
        <tr>
            <th>Customer</th>
            <td>{customerNumber}</td>
        </tr>
        <tr>
            <th>Date</th>
            <td>{orderDate}</td>
        </tr>
    </table>
</div>";

$grid->setInsertFormTemplate($insert);
$grid->setEditFormTemplate($edit);
$grid->setViewFormTemplate($view);

$grid->table('orders')
    ->template('bootstrap5')
    ->perPage(10)
    ->required(false)
    ->validation_required('customerNumber')
    ->validation_required('orderDate')
    ->modal();

echo $grid->render();

PDF

ArtiGrid includes integrated PDF support, allowing you to generate custom documents such as invoices, reports, or printable summaries directly from PHP.

1. Get PDF Object

This retrieves the PDF object from ArtiGrid so you can generate a document using HTML content.

$pdf = $grid->getPDFObject();

2. Prepare Invoice Data

Define the main invoice information and the list of items.

$invoiceData = [
    "client_name" => "John Smith",
    "invoice_number" => "INV20260316",
    "invoice_date" => "2026-03-16",
    "due_date" => "2026-03-30",
    "notes" => "This is a sample invoice generated with ArtiGrid."
];

$items = [
    ["description" => "Product A", "quantity" => 2, "unit_price" => 1500],
    ["description" => "Product B", "quantity" => 1, "unit_price" => 3000],
    ["description" => "Service C", "quantity" => 3, "unit_price" => 1200]
];

3. Generate Table Rows and Calculate Totals

Loop through the items, generate the invoice rows, and calculate the final total.

$totalAmount = 0;
$rowsHtml = "";

foreach ($items as $index => $item) {
    $amount = $item['quantity'] * $item['unit_price'];
    $totalAmount += $amount;

    $rowsHtml .= "<tr>
        <td>" . ($index + 1) . "</td>
        <td>" . $item['description'] . "</td>
        <td>" . $item['quantity'] . "</td>
        <td>" . $item['unit_price'] . "</td>
        <td>" . $amount . "</td>
    </tr>";
}

4. Create Full HTML for the Invoice

Build the HTML layout that will be rendered inside the PDF.

$html = <<<EOD
<h1 style="text-align:center;">Invoice</h1>
<table>...</table>
<table border="1">
    ...
    $rowsHtml
    ...
</table>
<p><strong>Notes:</strong> {$invoiceData['notes']}</p>
EOD;

5. Generate and Output the PDF

$pdf->SetFont('dejavusans', '', 12, '', true);
$pdf->AddPage();
$pdf->WriteHTML($html);
$pdf->Output("invoice_demo.pdf", "I");
exit;

Full Example

$grid = new ArtiGrid();

// Get PDF object
$pdf = $grid->getPDFObject();

// Sample invoice data
$invoiceData = [
    "client_name" => "John Smith",
    "invoice_number" => "INV20260316",
    "invoice_date" => "2026-03-16",
    "due_date" => "2026-03-30",
    "notes" => "This is a sample invoice generated with ArtiGrid."
];

$items = [
    ["description" => "Product A", "quantity" => 2, "unit_price" => 1500],
    ["description" => "Product B", "quantity" => 1, "unit_price" => 3000],
    ["description" => "Service C", "quantity" => 3, "unit_price" => 1200]
];

// Calculate totals
$totalAmount = 0;
$rowsHtml = "";

foreach ($items as $index => $item) {
    $amount = $item['quantity'] * $item['unit_price'];
    $totalAmount += $amount;

    $rowsHtml .= "<tr style='background-color:#f2f2f2;'>
        <td style='width:5%;text-align:center;'>" . ($index + 1) . "</td>
        <td style='width:50%;'>" . $item['description'] . "</td>
        <td style='width:15%;text-align:center;'>" . $item['quantity'] . "</td>
        <td style='width:15%;text-align:right;'>$ " . number_format($item['unit_price'],0,",",".") . "</td>
        <td style='width:15%;text-align:right;'>$ " . number_format($amount,0,",",".") . "</td>
    </tr>";
}

$totalFormatted = number_format($totalAmount, 0, ".", ",");

// Full HTML invoice
$html = <<<EOD
<h1 style="text-align:center;">Invoice</h1>

<table style="width:100%;font-size:12px;margin-bottom:20px;">
<tr>
    <td style="width:50%;">Client:<br><strong>{$invoiceData['client_name']}</strong></td>
    <td style="width:50%;">Invoice No.:<br><strong>{$invoiceData['invoice_number']}</strong></td>
</tr>
<tr>
    <td>Invoice Date:<br>{$invoiceData['invoice_date']}</td>
    <td>Due Date:<br>{$invoiceData['due_date']}</td>
</tr>
</table>

<table style="width:100%;border-collapse: collapse;font-size:11px;" border="1">
<tr style="background-color:#d9d9d9;">
    <th style="width:5%;">#</th>
    <th style="width:50%;">Description</th>
    <th style="width:15%;">Quantity</th>
    <th style="width:15%;">Unit Price</th>
    <th style="width:15%;">Amount</th>
</tr>
$rowsHtml
<tr style="background-color:#e1e1e1;">
    <td colspan="4" style="text-align:right;"><strong>Total</strong></td>
    <td style="text-align:right;"><strong>$ $totalFormatted</strong></td>
</tr>
</table>

<br>
<p><strong>Notes:</strong><br>{$invoiceData['notes']}</p>
EOD;

// Generate PDF
$pdf->SetFont('dejavusans', '', 12, '', true);
$pdf->AddPage();
$pdf->WriteHTML($html);
$pdf->Output("invoice_demo.pdf", "I");
exit;

Action Buttons Conditions

ArtiGrid allows you to control the visibility of action buttons such as view, edit, and delete based on dynamic conditions.

Using the setActionCondition() method, you can define rules that determine when a button should be shown or hidden for each row.

Example

$grid = new ArtiGrid();

$grid->table('employees')
    ->template('bootstrap5')
    ->unset('filter', false)

    // Hide delete button for employee 1370
    ->setActionCondition('delete', ['employeeNumber', '!=', 1370])

    // Hide edit button for lastName = Hernandez
    ->setActionCondition('edit', ['lastName', '!=', 'Hernandez'])

    // Hide view button for employee 1501
    ->setActionCondition('view', ['employeeNumber', '!=', 1501])

    ->modal();

echo $grid->render();

Why use this

• Restrict actions for specific records
• Apply business rules directly in the UI
• Prevent accidental edits or deletions
• Simulate permission systems without backend logic

Custom Buttons

ArtiGrid allows you to create fully customizable action buttons for each row using the addCustomBtn() method.

These buttons can execute JavaScript functions, navigate to URLs, or include dynamic attributes based on row data.

Example

$grid = new ArtiGrid();

$grid->table('products')
    ->template('bootstrap5')
    ->addCustomBtn(
        'btn btn-sm btn-light',      // CSS classes
        '',                          // JS action (optional)
        '<i class="fa fa-globe"></i>', // icon HTML
        'Go',                        // button text

        // condition: show only if id != 31
        ['id', '!=', 31],

        // URL (dynamic)
        'https://google.cl/search?q={name}',

        // target
        '_blank',

        // extra attributes
        [
            'data-name' => '{name}',
            'onclick' => 'console.log("{id}")'
        ]
    )
    ->modal();

echo $grid->render();

Dynamic Placeholders

You can use placeholders that are automatically replaced with row values:

• {id}
• {name}
• {any_field}

Use Cases

• Redirect to detail pages
• Open external services (Google, APIs, etc.)
• Trigger JS actions (modals, alerts, logs)
• Attach metadata with data-*

Actions Position

ArtiGrid allows you to control where the action buttons (view, edit, delete) are displayed within the table using the actionsPosition() method.

By default, action buttons are displayed on the right side of the grid, but you can easily move them to the left depending on your layout needs.

Example

$grid = new ArtiGrid();

$grid->table('products')
    ->template('bootstrap5')
    ->required(false)
    ->actionsPosition('left') // move actions to the left
    ->validation_required('productCode')
    ->perPage(10)
    ->modal();

echo $grid->render();

When to use it

• When you want quick access to actions
• When following UI patterns where actions come first
• When combining with checkboxes or bulk actions
• When using compact or admin-style layouts

HTML Template for CRUD

ArtiGrid allows you to fully customize the layout of your CRUD interface using HTML templates. This gives you complete control over where each element is rendered.

Instead of using a fixed layout, you can reposition components like: search inputs, buttons, pagination, and the table itself.

Available placeholders

• {table} → main data table
• {search_input} → search input
• {search_column} → column selector
• {add_button} → add record button
• {bulk_delete} → delete multiple button
• {pagination} → pagination controls
• {perpage} → records per page selector
• {refresh} → refresh button
• {search} → legacy combined search

Example

$grid = new ArtiGrid();

$grid->setCrudTemplate('
    <div class="d-flex justify-content-between align-items-center mb-2 p-2">
        <div class="d-flex gap-2">
            {bulk_delete}
            {pagination}
        </div>

        <div class="d-flex gap-2">
            {add_button}
            {refresh}
        </div>
    </div>

    <div>{table}</div>

    <div class="d-flex align-items-center mt-2 p-2 w-100">
        <div>
            {perpage}
        </div>

        <div class="ms-auto d-flex gap-2 align-items-center">
            {search_input}
            {search_column}
        </div>
    </div>
');

$grid->table('payments')
    ->template('bootstrap5')
    ->fieldCss('customerNumber', ['customerNumber', 'demo'])
    ->formFields(['customerNumber','checkNumber','paymentDate', 'amount'])
    ->modal();

echo $grid->render();

What this layout does

• Top section → buttons and pagination
• Middle → table
• Bottom → per-page + search controls

Overview Nested Table

Each nested grid is fully independent and can have its own actions, pagination, form fields, validation rules, column visibility, and conditional button behavior. ArtiGrid automatically handles all AJAX loading, parent–child filtering, and foreign key synchronization.

Hierarchy Example

This is the structure used in the full example on this page:

Basic Nested Table

The nestedTable() method is the only thing you need to define a child grid. You provide a label, the parent key, the child table, and the child key.

Signature

$grid->nestedTable(
    string $label,       // Tab/section label shown in the UI
    string $parentKey,   // Column in the parent table (e.g. "orderNumber")
    string $childTable,  // Child table name (e.g. "orderdetails")
    string $childKey,    // Column in the child table that references the parent
    array  $config = []  // Optional configuration (see next section)
);

Minimal Example

$grid = new ArtiGrid();
$grid->table('orders');

$grid->nestedTable("Order Details", "orderNumber", "orderdetails", "orderNumber");

echo $grid->render();

Configuration Options

The fourth argument of nestedTable() accepts an array with options that apply exclusively to the child grid.

Available keys

$grid->nestedTable("Label", "parentKey", "childTable", "childKey", [

    // ── Actions ──────────────────────────────────────────────────
    "actions" => [
        "add"             => true,
        "edit"            => true,
        "delete"          => true,
        "view"            => true,
        "search"          => true,
        "refresh"         => true,
        "delete_multiple" => true,
        "edit_multiple"   => true,
    ],

    // ── Layout ───────────────────────────────────────────────────
    "buttonsArrange" => true,   // group action buttons into a dropdown
    "useModal"       => false,  // open edit/view forms inline (not in a modal)
    "perPage"        => 10,     // rows per page
    "template"       => "bootstrap5",

    // ── Columns & fields ─────────────────────────────────────────
    "columns"    => ['field1', 'field2'],   // visible table columns
    "formFields" => ['field1', 'field2'],   // fields shown in insert/edit form

    // ── Validation ───────────────────────────────────────────────
    "requiredFields"    => ['field1'],
    "allFieldsRequired" => false,

    // ── Conditional action buttons ────────────────────────────────
    "actionConditions" => [
        "edit"   => [["field" => "status", "operator" => "!=", "value" => "closed"]],
        "delete" => [["field" => "active", "operator" => "==", "value" => "1"]],
    ],

    // ── Sub-nesting (level 3+) ────────────────────────────────────
    "nestedGrids" => [
        [
            "label"      => "Sub-label",
            "parentKey"  => "someKey",
            "childTable" => "some_table",
            "childKey"   => "some_fk",
            "config"     => [ /* same options recursively */ ]
        ]
    ]
]);

Multi-level Nesting

To nest a grid inside a nested grid (level 3, 4, …), use the nestedGrids key inside the parent's config array. This works recursively to any depth.

Example — Level 2 + Level 3

$grid = new ArtiGrid();
$grid->table('orders');

$grid->nestedTable("Order Details", "orderNumber", "orderdetails", "orderNumber", [

    "actions"     => ["add" => true, "edit" => true, "delete" => true, "view" => true],
    "columns"     => ['productCode', 'quantityOrdered', 'priceEach'],
    "formFields"  => ['productCode', 'quantityOrdered', 'priceEach'],
    "perPage"     => 5,

    // ── Level 3 nested inside orderdetails ──────────────────────
    "nestedGrids" => [
        [
            "label"      => "Products",
            "parentKey"  => "productCode",
            "childTable" => "products",
            "childKey"   => "productCode",
            "config"     => [
                "actions"    => ["add" => true, "edit" => true, "delete" => false, "view" => true],
                "columns"    => ['productCode', 'productName', 'productLine', 'quantityInStock'],
                "formFields" => ['productCode', 'productName', 'productLine', 'quantityInStock'],
                "perPage"    => 5,
            ]
        ]
    ]
]);

echo $grid->render();

Multiple Independent Children

You can attach more than one independent child grid to the same parent by calling nestedTable() multiple times. Each child is completely independent — it has its own actions, columns, and config.

Example — Two children on the same parent

$grid = new ArtiGrid();
$grid->table('orders');

// ── Child 1: orderdetails ─────────────────────────────────────────
$grid->nestedTable("Order Details", "orderNumber", "orderdetails", "orderNumber", [
    "actions"    => ["add" => true, "edit" => true, "delete" => true, "view" => true],
    "columns"    => ['productCode', 'quantityOrdered', 'priceEach'],
    "formFields" => ['productCode', 'quantityOrdered', 'priceEach'],
    "perPage"    => 5,
]);

// ── Child 2: customers (independent, same parent key) ─────────────
$grid->nestedTable("Customers", "orderNumber", "customers", "orderNumber", [
    "actions"    => ["add" => true, "edit" => true, "delete" => false, "view" => true],
    "columns"    => ['customerName', 'city', 'country'],
    "formFields" => ['customerName', 'city', 'country', 'orderNumber'],
    "perPage"    => 5,
]);

echo $grid->render();

Action Conditions in Nested Grids

You can control which action buttons (edit, delete, view) appear on each child row using actionConditions inside the config. The condition is evaluated against the row's own field values.

Example — Hide Edit for a specific productCode

$grid->nestedTable("Order Details", "orderNumber", "orderdetails", "orderNumber", [

    "actions" => ["add" => true, "edit" => true, "delete" => true, "view" => true],

    // Hide "Edit" when productCode == 'S18_2325'
    "actionConditions" => [
        "edit" => [
            [
                "field"    => "productCode",
                "operator" => "!=",
                "value"    => "S18_2325"
            ]
        ]
    ],

    "columns"    => ['productCode', 'quantityOrdered', 'priceEach'],
    "formFields" => ['productCode', 'quantityOrdered', 'priceEach'],
]);

Multiple conditions on different buttons

"actionConditions" => [
    "edit"   => [["field" => "status",  "operator" => "!=", "value" => "closed"]],
    "delete" => [["field" => "locked",  "operator" => "==", "value" => "0"]],
    "view"   => [["field" => "visible", "operator" => "==", "value" => "1"]],
],

Using render("edit") and render("view") with Nested Tables

When you call render("edit", $id) or render("view", $id), ArtiGrid renders the edit or view form for a specific record directly in the page — without showing the main CRUD table. Any nested tables configured on that grid are pre-rendered inline alongside the form.

$grid = new ArtiGrid();
$grid->table('orders');
$grid->validation_required("customerNumber");

$grid->nestedTable("Order Details", "orderNumber", "orderdetails", "orderNumber", [
    "actions"    => ["add" => true, "edit" => true, "delete" => true, "view" => true],
    "columns"    => ['productCode', 'quantityOrdered', 'priceEach'],
    "formFields" => ['productCode', 'quantityOrdered', 'priceEach'],
    "buttonsArrange" => true,
]);

// Render the edit form for order #10101, with the nested grid pre-loaded
echo $grid->render("edit", 10101);

Known limitation — dropdown buttons with multiple nested grids

When using buttonsArrange: true (dropdown action buttons) and you have two or more nested grids on the same page via render("edit"), the dropdown toggle may not work correctly. This happens because each nested grid initializes its own dropdown listener, and they cancel each other out.

The fix is a one-line change in artigrid.js: replace the per-instance flag with a global one in clickDropdown().

// artigrid.js — clickDropdown()

// ❌ Before (per-instance flag — breaks with multiple grids on the same page)
// if (this._dropdownBound) return;
// this._dropdownBound = true;

// ✅ After (global flag — only one document listener regardless of instance count)
if (ArtiGrid._globalDropdownBound) return;
ArtiGrid._globalDropdownBound = true;

Full Example

The example below demonstrates a 3-level nested structure: orders → orderdetails → products, plus a second independent child orders → customers.

$grid = new ArtiGrid();
$grid->table('orders');
$grid->template('bootstrap5');
$grid->unset("add", true);
$grid->perPage(5);
$grid->required(false);
$grid->validation_required("customerNumber");

// ── Level 2: orderdetails ─────────────────────────────────────────
$grid->nestedTable("Order Details", "orderNumber", "orderdetails", "orderNumber", [

    // ── Actions ──────────────────────────────────────────────────
    "actions" => [
        "add"             => true,
        "edit"            => true,
        "delete"          => true,
        "view"            => true,
        "search"          => true,
        "refresh"         => true,
        "delete_multiple" => true,
        "edit_multiple"   => true,
    ],

    // ── Layout ───────────────────────────────────────────────────
    "template"       => "bootstrap5",     // bootstrap5 | bootstrap4
    "useModal"       => false,            // open forms inline instead of modal
    "buttonsArrange" => true,             // group action buttons into a dropdown
    "actionsPosition"=> "right",          // left | right

    // ── Pagination ───────────────────────────────────────────────
    "perPage"        => 5,
    "perPageOptions" => [5, 10, 25, 50, "all"],

    // ── Columns & Fields ─────────────────────────────────────────
    "columns"        => ['productCode', 'quantityOrdered', 'priceEach'],
    "formFields"     => ['productCode', 'quantityOrdered', 'priceEach'],
    "hiddenColumns"  => [],               // columns to hide from the grid view
    "colRename"      => [
        'productCode'     => 'Code',
        'quantityOrdered' => 'Qty',
        'priceEach'       => 'Unit Price',
    ],

    // ── Sorting ──────────────────────────────────────────────────
    "sortColumn"     => "priceEach",
    "sortOrder"      => "desc",           // asc | desc

    // ── Field Types ──────────────────────────────────────────────
    "fieldTypes"     => [
        'priceEach' => 'number',          // text, number, date, datetime,
                                          // textarea, checkbox, hidden, etc.
    ],

    // ── Validation ───────────────────────────────────────────────
    "requiredFields"    => ['productCode', 'quantityOrdered', 'priceEach'],
    "allFieldsRequired" => false,

    // ── Comboboxes ───────────────────────────────────────────────
    "comboBoxes" => [
        // From a database table
        'productCode' => [
            'source'      => 'table',
            'table'       => 'products',
            'value'       => 'productCode',
            'label'       => 'productName',
            'dependsOn'   => null,        // parent field name (for dependent dropdowns)
            'dependsField'=> null,        // DB column to match
            'where'       => [],
        ],
        // From a static array
        'status' => [
            'source'  => 'array',
            'options' => ['active' => 'Active', 'inactive' => 'Inactive'],
        ],
    ],

    // ── Radio Buttons ────────────────────────────────────────────
    "radioFields" => [
        'priority' => [
            'low'    => 'Low',
            'medium' => 'Medium',
            'high'   => 'High',
        ],
    ],

    // ── Export ───────────────────────────────────────────────────
    "exportTypes" => ['excel', 'csv', 'pdf'],

    // ── Inline Edit ──────────────────────────────────────────────
    "inlineEditEnabled" => false,
    "inlineEditConfig"  => [
        'mode'       => 'cell',           // cell | row
        'saveOnBlur' => true,
        'highlight'  => true,
    ],

    // ── Form Templates ───────────────────────────────────────────
    "insertFormTemplate" => "",           // custom HTML string or file path
    "editFormTemplate"   => "",
    "viewFormTemplate"   => "",
    "crudTemplate"       => "",           // custom HTML template for the full grid

    // ── Custom Buttons ───────────────────────────────────────────
    "customButtons" => [
        [
            'class'      => 'btn btn-sm btn-info',
            'action'     => 'customAction',
            'label'      => '',
            'title'      => 'Preview',
            'conditions' => ['quantityOrdered', '>', 0],
            'url'        => '/preview/{productCode}',
            'target'     => '_blank',
            'attributes' => ['data-code' => '{productCode}'],
        ],
    ],

    // ── Duplicate Check ──────────────────────────────────────────
    "duplicateFields" => ['productCode'],

    // ── Conditional Cell Colors ──────────────────────────────────
    "columnColors" => [
        [
            'field'    => 'quantityOrdered',
            'operator' => '<',
            'value'    => 10,
            'color'    => 'background:red;color:white;',
        ],
    ],

    // ── Conditional Row Colors ───────────────────────────────────
    "rowColors" => [
        [
            'field'    => 'priceEach',
            'operator' => '>',
            'value'    => 100,
            'color'    => [
                'background'  => '#fff3cd',
                'color'       => '#000',
                'font-weight' => 'bold',
            ],
        ],
    ],

    // ── Action Button Conditions ─────────────────────────────────
    "actionConditions" => [
        "edit"   => [["field" => "productCode", "operator" => "!=", "value" => "S18_2325"]],
        "delete" => [["field" => "quantityOrdered", "operator" => ">", "value" => 0]],
        "view"   => [],
    ],

    // ── Joins ────────────────────────────────────────────────────
    "joins" => [
        [
            'localColumn'   => 'productCode',
            'joinTable'     => 'products',
            'foreignColumn' => 'productCode',
            'type'          => 'LEFT',    // INNER | LEFT | RIGHT
        ],
    ],

    // ── Subselects (dynamic aggregated columns) ──────────────────
    "subselects" => [
        'TotalLine' => 'SELECT SUM(quantityOrdered * priceEach)
                        FROM orderdetails
                        WHERE orderNumber = {orderNumber}',
    ],

    // ── Calculated Fields (arithmetic on existing columns) ───────
    "calculatedFields" => [
        'LineTotal' => '{quantityOrdered} * {priceEach}',
    ],

    // ── Sub-nesting (Level 3) ────────────────────────────────────
    "nestedGrids" => [
        [
            "label"      => "Products",
            "parentKey"  => "productCode",
            "childTable" => "products",
            "childKey"   => "productCode",
            "config"     => [
                "actions" => [
                    "add"             => true,
                    "edit"            => true,
                    "delete"          => false,
                    "view"            => true,
                    "delete_multiple" => true,
                    "edit_multiple"   => true,
                ],
                "columns"    => ['productCode', 'productName', 'productLine', 'quantityInStock'],
                "formFields" => ['productCode', 'productName', 'productLine', 'quantityInStock'],
                "perPage"    => 5,
            ],
        ],
    ],
]);

// ── Level 2: customers (independent second child of orders) ───────
$grid->nestedTable("Customers", "orderNumber", "customers", "orderNumber", [
    "actions" => [
        "add"             => true,
        "edit"            => true,
        "delete"          => false,
        "view"            => true,
        "search"          => true,
        "delete_multiple" => true,
        "edit_multiple"   => true,
    ],
    "columns"    => ['customerName', 'city', 'country'],
    "formFields" => ['customerName', 'city', 'country', 'orderNumber'],
    "perPage"    => 5,
    "template"   => "bootstrap5",
]);

echo $grid->render();

Overview SubSelect & Calculations

ArtiGrid allows you to enrich your grids with dynamic data using subselects and calculated fields. This enables you to pull aggregated values from related tables and perform inline computations directly inside the grid without additional backend processing.

SubSelect Concept

A subselect allows you to retrieve aggregated or related data from another table based on the current row context. The placeholder {customerNumber} is automatically replaced for each record.

  $grid->subselect('Paid',
      'SELECT SUM(amount) FROM payments WHERE customerNumber = {customerNumber}'
  );


In this example, ArtiGrid calculates the total payments made by each customer dynamically.

Calculated Fields

Calculated fields allow you to create derived values using existing columns or subselect results. These expressions are evaluated per row after all data is resolved.

  $grid->calculate('Profit', '{Paid} - {creditLimit}');


Here, Profit is computed by subtracting the customer's credit limit from the total paid amount.

Full Implementation Example

This is a complete working example combining both features:

  <?php
      $grid = new ArtiGrid();
      $grid->table('customers');

      $grid->crudCol([
          'customerNumber',
          'customerName',
          'city',
          'creditLimit',
          'Paid',
          'Profit'
      ]);

      $grid->subselect('Paid',
          'SELECT SUM(amount) FROM payments WHERE customerNumber = {customerNumber}'
      );

      $grid->calculate('Profit', '{Paid} - {creditLimit}');

      echo $grid->render();
  ?>


Advanced Filters

The advanced filter panel is a collapsible section rendered above the grid that sends search parameters to the grid's AJAX endpoint without reloading the page. Filters are defined in PHP using advancedFilter() and displayed using renderAdvancedFilterPanel().

Method Signature

$grid->advancedFilter(
    string $field,      // column in the table to filter
    string $type,       // control type (see available types below)
    array  $options,    // options for select / checkbox / radio
    array  $extra  = [] // label, placeholder, operator, min, max, group...
);

Parameters

Helper Methods

// Set the panel title (default: "Advanced Filters")
$grid->advancedFilterTitle('Filter consultations');

// Open the panel by default (default: closed)
$grid->advancedFilterOpen(true);

// Render the panel — always before render()
echo $grid->renderAdvancedFilterPanel();
echo $grid->render();

Available Types

• text — free text input, uses LIKE by default for partial matching
• number — numeric input, supports min and max constraints
• date — flatpickr datepicker, format YYYY-MM-DD
• datetime — flatpickr with time, format YYYY-MM-DD HH:MM
• date_range — two date pickers (from → to), generates field_from and field_to
• number_range — two numeric inputs (min – max)
• select — static dropdown from an array ['val' => 'Label']
• select_cascade — dropdown that loads options via AJAX based on a parent filter value
• checkbox — multiple checkboxes, generates an SQL IN clause
• radio — radio buttons, includes an "All" option automatically
• boolean — Yes / No dropdown, maps to 1 / 0

1. Text — Partial Search

$grid->advancedFilter('customerName', 'text', [], [
    'label'       => 'Customer',
    'placeholder' => 'Search by name...',
    'operator'    => 'LIKE'
]);

2. Number — With Constraints

$grid->advancedFilter('creditLimit', 'number', [], [
    'label'    => 'Credit limit',
    'operator' => '>=',
    'min'      => 0,
    'max'      => 500000
]);

3. Date and Datetime

$grid->advancedFilter('orderDate', 'date', [], [
    'label'    => 'Order date',
    'operator' => '='
]);

$grid->advancedFilter('createdAt', 'datetime', [], [
    'label'    => 'Created from',
    'operator' => '>='
]);

4. Date Range

$grid->advancedFilter('paymentDate', 'date_range', [], [
    'label'      => 'Payment date',
    'field_from' => 'paymentDate_from', // default: campo_from
    'field_to'   => 'paymentDate_to'    // default: campo_to
]);
// Generates: WHERE paymentDate >= :from AND paymentDate <= :to

5. Number Range

$grid->advancedFilter('amount', 'number_range', [], [
    'label' => 'Amount',
    'min'   => 0,
    'max'   => 100000
]);
// Generates: WHERE amount >= :min AND amount <= :max

6. Select — Static Dropdown

// From a static array
$grid->advancedFilter('status', 'select', [
    'Shipped'   => 'Shipped',
    'Pending'   => 'Pending',
    'Cancelled' => 'Cancelled'
], ['label' => 'Status']);

// Loaded from the database using array_column
$grid->advancedFilter('office', 'select',
    array_column(
        $pdo->query("SELECT officeCode, city FROM offices ORDER BY city")
             ->fetchAll(PDO::FETCH_ASSOC),
        'city', 'officeCode'
    ),
    ['label' => 'Office']
);

7. Select Cascade — Dependent Dropdown (AJAX)

Loads options dynamically via AJAX when the user selects a value in the parent filter. Supports multi-level chaining (e.g. country → region → city).

// Parent: static select
$grid->advancedFilter('office', 'select',
    array_column(
        $pdo->query("SELECT officeCode, city FROM offices")->fetchAll(PDO::FETCH_ASSOC),
        'city', 'officeCode'
    ),
    ['label' => 'Office']
);

// Child: loads managers based on the selected office
$grid->advancedFilter('manager', 'select_cascade', [], [
    'label'         => 'Manager',
    'depends_on'    => 'office',         // parent field in the panel
    'table'         => 'employees',       // table to query
    'value'         => 'employeeNumber',  // option value column
    'label_col'     => 'firstName',       // option label column
    'depends_field' => 'officeCode',      // FK column in the child table
    'where'         => []
]);

8. Multi-level Cascade — Country → Region → City

$grid
    ->advancedFilter('country', 'select',
        array_column(
            $pdo->query("SELECT id, local_name FROM meta_location WHERE type='CO' ORDER BY local_name")
                ->fetchAll(PDO::FETCH_ASSOC),
            'local_name', 'id'
        ),
        ['label' => 'Country', 'group' => 'Location']
    )
    ->advancedFilter('region', 'select_cascade', [], [
        'label'         => 'Region',
        'depends_on'    => 'country',
        'table'         => 'meta_location',
        'value'         => 'id',
        'label_col'     => 'local_name',
        'depends_field' => 'in_location',
        'where'         => ['type' => ['=', 'RE']],
        'group'         => 'Location'
    ])
    ->advancedFilter('city', 'select_cascade', [], [
        'label'         => 'City',
        'depends_on'    => 'region',
        'table'         => 'meta_location',
        'value'         => 'id',
        'label_col'     => 'local_name',
        'depends_field' => 'in_location',
        'where'         => ['type' => ['=', 'CI']],
        'group'         => 'Location'
    ]);

9. Checkbox — Multiple Selection

$grid->advancedFilter('productLine', 'checkbox', [
    'Classic Cars'     => 'Classic Cars',
    'Motorcycles'      => 'Motorcycles',
    'Trucks and Buses' => 'Trucks and Buses'
], ['label' => 'Product line']);
// Generates: WHERE productLine IN ('Classic Cars', 'Motorcycles')

10. Radio — Single Selection

$grid->advancedFilter('status', 'radio', [
    'active'   => 'Active',
    'inactive' => 'Inactive',
    'pending'  => 'Pending'
], ['label' => 'Status']);
// An "All" option is included automatically as the first choice

11. Boolean — Yes / No

$grid->advancedFilter('active', 'boolean', [], [
    'label'    => 'Active?',
    'operator' => '='
]);
// Generates: WHERE active = 1  or  WHERE active = 0

Grouping Filters Visually

The group key in $extra creates labeled sections inside the panel. Filters that share the same group name are rendered together under a shared heading — no extra code required.

$grid
    ->advancedFilter('office',   'select',        [...], ['label' => 'Office',   'group' => 'Location'])
    ->advancedFilter('country',  'select',        [...], ['label' => 'Country',  'group' => 'Location'])
    ->advancedFilter('region',   'select_cascade', [], ['label' => 'Region',   'group' => 'Location'])
    ->advancedFilter('name',     'select',        [...], ['label' => 'Name',     'group' => 'Person'])
    ->advancedFilter('manager',  'select_cascade', [], ['label' => 'Manager',  'group' => 'Person']);

Supported Operators

• LIKE → partial match (%value%) — used in text
• = → exact match — used in select, radio, boolean, date, number
• != → not equal — used in select, radio, number, text
• >= → greater than or equal (from) — used in date_range, number_range, number
• <= → less than or equal (to) — used in date_range, number_range, number
• IN → multiple values — generated automatically by checkbox

Full Example

$grid = new ArtiGrid();
$grid->table('consultation')
    ->template('bootstrap5')
    ->required(false)
    ->validation_required(['office', 'manager', 'country', 'region', 'city'])
    ->fields_arrange('office,manager,name', 'Group 1 - Names', true, true)
    ->fields_arrange('country,region,city', 'Group 2 - Regions', true, true)
    ->combobox('office', 'offices', 'officeCode', 'city')
    ->combobox('name', [
        'Pedro'   => 'Pedro',
        'Juan'    => 'Juan',
        'JHON'    => 'JHON',
        'JACKSON' => 'JACKSON',
    ])
    ->combobox('manager', 'employees', 'employeeNumber', ['firstName', 'lastName'],
        'office', 'officeCode'
    )
    ->combobox('country', 'meta_location', 'id', 'local_name', null, null, ['type' => ['=', 'CO']])
    ->combobox('region',  'meta_location', 'id', 'local_name', 'country', 'in_location', ['type' => ['=', 'RE']])
    ->combobox('city',    'meta_location', 'id', 'local_name', 'region',  'in_location', ['type' => ['=', 'CI']])

    // Advanced filters panel
    ->advancedFilterTitle('Filter consultations')
    ->advancedFilterOpen(true)

    ->advancedFilter('office', 'select',
        array_column($pdo->query("SELECT officeCode, city FROM offices ORDER BY city")->fetchAll(PDO::FETCH_ASSOC), 'city', 'officeCode'),
        ['label' => 'Office', 'group' => 'Person']
    )
    ->advancedFilter('manager', 'select_cascade', [], [
        'label'         => 'Manager',
        'depends_on'    => 'office',
        'table'         => 'employees',
        'value'         => 'employeeNumber',
        'label_col'     => 'firstName',
        'depends_field' => 'officeCode',
        'group'         => 'Person'
    ])
    ->advancedFilter('name', 'select', [
        'Pedro'   => 'Pedro',
        'Juan'    => 'Juan',
        'JHON'    => 'JHON',
        'JACKSON' => 'JACKSON',
    ], ['label' => 'Name', 'group' => 'Person'])
    ->advancedFilter('country', 'select',
        array_column(
            $pdo->query("SELECT id, local_name FROM meta_location WHERE type='CO' ORDER BY local_name")->fetchAll(PDO::FETCH_ASSOC),
            'local_name', 'id'
        ),
        ['label' => 'Country', 'group' => 'Location']
    )
    ->advancedFilter('region', 'select_cascade', [], [
        'label'         => 'Region',
        'depends_on'    => 'country',
        'table'         => 'meta_location',
        'value'         => 'id',
        'label_col'     => 'local_name',
        'depends_field' => 'in_location',
        'where'         => ['type' => ['=', 'RE']],
        'group'         => 'Location'
    ])
    ->advancedFilter('city', 'select_cascade', [], [
        'label'         => 'City',
        'depends_on'    => 'region',
        'table'         => 'meta_location',
        'value'         => 'id',
        'label_col'     => 'local_name',
        'depends_field' => 'in_location',
        'where'         => ['type' => ['=', 'CI']],
        'group'         => 'Location'
    ]);

echo $grid->renderAdvancedFilterPanel();
echo $grid->render();

Filter Panel Position

Use advancedFilterPosition() to control where the panel is rendered relative to the grid. When a position is set, ArtiGrid automatically wraps the panel and the grid together — you only need to call render() (no separate renderAdvancedFilterPanel() call).

public function advancedFilterPosition(string $position): self
{
    $allowed = ['top', 'bottom', 'left', 'right'];
    $position = strtolower(trim($position));
    if (in_array($position, $allowed, true)) {
        $this->advancedFilterPosition = $position;
    }
    return $this;
}

$grid
    ->advancedFilterPosition('left')   // 'top' | 'bottom' | 'left' | 'right'
    ->advancedFilterTitle('Filter consultations')
    ->advancedFilterOpen(true);

// When a position is set, just call render() — the panel is included automatically
echo $grid->render();

Custom Filter Template

Use setAdvancedFilterTemplate() to control the exact HTML layout of the panel. Each filter is injected using its field name as a placeholder ({field}), and you wrap each placeholder in your own Bootstrap columns. You can also reuse CRUD controls such as {export_proxy}, {search_input}, {perpage}, etc.

$grid
    ->advancedFilterLazy(true)
    ->advancedFilterOpen(true)
    ->setAdvancedFilterTemplate('
        <div class="row g-3">
            <div class="col-md-12">{office}</div>
            <div class="col-md-12">{manager}</div>
            <div class="col-md-12">{name}</div>
            <div class="col-md-12">{country}</div>
            <div class="col-md-12">{region}</div>
            <div class="col-md-12">{city}</div>
        </div>
        <div class="d-flex justify-content-end mt-2">
            {export_proxy}
        </div>
    ');

Summary Bar

The summary bar adds an aggregate row to your grid, automatically computing values across the records. It is useful for dashboards, financial tables, inventory lists, or any grid where users need totals without leaving the page.

Available operations

• sum → total of all values in the column
• avg → average value
• min → smallest value
• max → largest value
• count → number of records

Signature

$grid->summary(
          array $columns,      // ['column' => ['sum', 'avg', ...], ...]
          array $config = []   // formatting and layout options
      );

Example

$grid = new ArtiGrid();

      $grid->table('products')
          ->crudCol([
              'id',
              'productCode',
              'quantityInStock',
              'MSRP'
          ])
          ->summary([
              'quantityInStock' => ['sum', 'avg', 'max'],
              'MSRP'            => ['sum', 'min'],
          ], [
              'label'      => 'Grand Total',
              'pageLabel'  => 'This page',
              'decimals'   => 2,
              'thousands'  => '.',
              'decimalSep' => ',',
              'position'   => 'bottom', // bottom or top
          ]);

      echo $grid->render();

Bulk Custom Action

The bulk custom action lets users select multiple records in the grid and run a custom server-side script against them with a single click. When the button is pressed, ArtiGrid sends the selected record IDs to the URL you define, where you can perform any task you need.

Signature

$grid->addBulkButton(
          string $label,          // button text
          string $url,            // server script that receives the selected IDs
          string $icon    = 'fa fa-bolt',           // icon class
          string $class   = 'btn btn-info btn-sm',  // CSS classes
          array  $attributes = [],  // extra HTML attributes (data-*, etc.)
          array  $confirm    = []   // optional SweetAlert confirmation dialog
      );

Data sent to your script

• ids → JSON-encoded array of the selected record IDs
• table → the grid's table name
• grid_id → the grid identifier

Example — Grid setup

$grid = new ArtiGrid();

      $grid->table('products')
          ->template('bootstrap5')
          ->formFields(['productName', 'productLine'])
          ->modal()
          ->addBulkButton(
              "Generate Invoice",
              "invoice.php",
              "fa fa-file-invoice",
              "btn btn-warning",
              [],
              [
                  'title' => 'Generate an invoice?',
                  'text'  => 'An invoice will be generated for the selected records.',
                  'icon'  => 'question'
              ]
          );

      echo $grid->render();

Example — Server script (invoice.php)

<?php
      require __DIR__ . '/../../artigrid/ArtiGrid.php';

      $ids     = json_decode($_POST['ids'] ?? '[]', true);
      $table   = $_POST['table'] ?? '';
      $grid_id = $_POST['grid_id'] ?? '';

      if (empty($ids)) {
          echo json_encode([
              'success' => false,
              'message' => 'No records selected'
          ]);
          exit;
      }

      $db = DB::connect();
      $q  = new Queryfy($db);

      $products = $q->table('products')
          ->where('id', $ids, 'IN')
          ->get();

      // Build the email body from the selected records
      $body  = '<h2>Selected Products</h2><table border="1" cellpadding="8">';
      $body .= '<tr><th>ID</th><th>Product</th><th>Category</th></tr>';
      foreach ($products as $product) {
          $body .= '<tr>'
              . '<td>' . $product['id'] . '</td>'
              . '<td>' . $product['productName'] . '</td>'
              . '<td>' . $product['productLine'] . '</td>'
              . '</tr>';
      }
      $body .= '</table>';

      $grid   = new ArtiGrid();
      $result = $grid->sendMail(
          'daniel.telematico@gmail.com',
          'Selected products from ArtiGrid',
          $body
      );

      echo json_encode([
          'success' => (bool)$result,
          'message' => $result ? 'Email sent successfully' : 'The email could not be sent'
      ]);
      ?>

Vertical Timeline

ArtiGrid can render records as a vertical timeline instead of a table, with full CRUD operations built in. This is ideal for chronological data such as events, activity logs, project milestones, or patient history.

Configuration

$grid->timeline([
          'dateField'    => 'start_date',   // date/datetime column used to order and label
          'titleField'   => 'title',        // headline of each timeline entry
          'contentField' => 'description',  // body text of each entry
          'iconField'    => 'icon',         // optional: column with a FA class, e.g. "fa fa-check"
          'colorField'   => 'color',        // optional: column with a hex color
          'align'        => 'alternate',    // left | right | alternate
          'dateFormat'   => 'd-m-Y H:i',    // PHP-style date format for the label
          'orderDir'     => 'desc',         // desc (newest first) | asc
      ]);

Example

$grid = new ArtiGrid();

      $grid->table('events')
          ->timeline([
              'dateField'    => 'start_date',
              'titleField'   => 'title',
              'contentField' => 'description',
              'iconField'    => 'icon',       // optional: column with a FA class
              'colorField'   => 'color',      // optional: column with a hex color
              'align'        => 'alternate',  // left | right | alternate
              'dateFormat'   => 'd-m-Y H:i',
              'orderDir'     => 'desc'
          ])
          ->required(false)
          ->validation_required([
              'title',
              'start_date',
              'end_date',
              'description',
              'color',
              'created_at',
              'updated_at'
          ])
          ->lang([
              'delete' => '¿Eliminar registro?'
          ])
          ->colorPicker('color', [
              'palette'  => '#3788d8 #28a745 #dc3545 #fd7e14',
              'format'   => 'hex',
              'position' => 'fixed'
          ])
          ->buttonsArrange()
          ->setActionCondition('delete', ['id', '!=', 2])
          ->modal(true);

      echo $grid->render('timeline');

Row Template

The setRowTemplate() method lets you completely replace the default table rows with your own HTML layout. Instead of a standard table, each record is rendered using your template — perfect for card grids, galleries, or any custom visual layout.

Signature

$grid->setRowTemplate(
          string $html,                     // template HTML with {field} placeholders
          string $wrapperClass = 'row g-4', // CSS class of the wrapper element
          string $wrapperTag   = 'div',     // wrapper tag: div | table | ul | ol | tbody
          array  $wrapperAttrs = []         // extra attributes for the wrapper
      );

Controlling columns per row

Because the cards use Bootstrap grid classes, the column class inside your template determines the layout: col-md-3 shows four cards per row, col-md-4 shows three, col-md-6 shows two, and so on.

Example

$grid = new ArtiGrid();

      $grid->table('gallery')
          ->template('bootstrap5')
          ->required(true)
          ->modal()
          ->perPage(12)
          ->setRowTemplate('
              <div class="col-md-3">
                  <div class="card h-100 shadow-sm">
                      <div class="card-header d-flex justify-content-between align-items-center">
                          <span>{title}</span>
                          {checkbox}
                      </div>
                      <div class="card-body">
                          <p>{image}</p>
                          {actions}
                      </div>
                  </div>
              </div>
          ');

      echo $grid->render();

Checkbox Conditions

Checkbox conditions let you control whether the selection checkbox appears on each row, based on that row's own field values. This prevents users from selecting records that should be excluded from bulk operations.

Signature

$grid->checkboxCondition(
          array $condition   // [field, operator, value]  e.g. ['id', '!=', 2]
      );

Example

$grid = new ArtiGrid();

      $grid->table('gallery')
          ->required(false)
          ->validation_required('image')
          ->validation_required('title')
          ->validation_required('description')
          ->template('bootstrap5')
          ->fieldType('image', 'image')
          ->formFields([
              'image',
              'title',
              'description'
          ])
          ->modal()
          ->setActionCondition('delete', ['id', '!=', 2])
          ->checkboxCondition(['id', '!=', 2]);

      echo $grid->render();

JavaScript Triggers (Events)

ArtiGrid emits custom events (CustomEvent) throughout the CRUD lifecycle. You can listen to them to run your own logic without modifying the library core: refresh related grids, show notifications, log audits, sync data, or integrate with external services.

Available events

Example — React to insert / update / delete

document.addEventListener('artigrid_inserted', function (e) {
    const { gridId, table, response, instance } = e.detail;
    console.log('New record in', table, response);
    // e.g. refresh a related grid
    ArtiGrid.reload('other_grid_id');
});

document.addEventListener('artigrid_updated', function (e) {
    console.log('Record updated in', e.detail.table);
});

document.addEventListener('artigrid_deleted', function (e) {
    const { action, id, ids } = e.detail;
    if (action === 'delete-multiple') {
        console.log('Bulk deleted:', ids);
    } else {
        console.log('Deleted:', id);
    }
});

Example — after AJAX (on the grid container)

const box = document.querySelector('.artigrid-container');

box.addEventListener('artigrid_before_ajax', function (e) {
    const { response, table, page, instance } = e.detail;
    console.log(`Loaded ${response.data?.length || 0} records from ${table} (page ${page})`);
    // e.g. recalculate a custom total, paint badges, etc.
});

Example — Login / select form

// Prepare the form on load
document.addEventListener('artigrid_select_form_loaded', function (e) {
    const { form, table } = e.detail;
    console.log('Select form ready:', table);
});

// Intercept before submit (you can add fields to formData)
document.addEventListener('artigrid_before_select_form_submit', function (e) {
    const { formData } = e.detail;
    formData.append('origin', 'web');
});

// Handle the response (redirect after login)
document.addEventListener('artigrid_select_form_response', function (e) {
    const { response } = e.detail;
    if (response.success && response.data?.success) {
        if (response.data?.redirect) {
            window.location.href = response.data.redirect;
        }
    } else {
        Swal.fire({
            icon: 'error',
            title: 'Error',
            text: response.data?.message || response.message
        });
    }
});
